Delay-Tolerant Networking (DTN) -Seminar Report

ABSTRACT

Increasingly, network applications must communicate with counterparts across disparate networking environments characterized by significantly different sets of physical and operational constraints; wide variations in transmission latency are particularly troublesome. The proposed Interplanetary Internet which must encompass both terrestrial and interplanetary links is an extreme case. An architecture based on a “least common denominator” protocol that can operate successfully and (where required) reliably in multiple disparate environments would simplify the development and deployment of such applications. The Internet protocols are ill suited for this purpose .The  three fundamental principles that would underlie a delay-tolerant networking (DTN) architecture and  the main structural elements of that architecture, centered on a new end-to-end over lay network protocol called bundling are examined here. The Internet infrastructure adaptations that might yield comparable performance are also examined but it is seen that the simplicity of the DTN architecture promises easier deployment and extension.

INTRODUCTION

Consider a scientist who is responsible for the operation of robotic meteorological station located on the planet Mars (Fig. 1). The weather station is one of several dozen instrument platforms that communicate among themselves via a wireless local area network deployed on the Martian surface. The scientist wants to upgrade the software in the weather station’s data management computer by installing and dynamically loading a large new module. The module must be transmitted first from the scientist’s workstation to a deep space antenna complex, then form the antenna complex to a constellation of relay satellites in low Mars orbit (no one of which is visible from Earth ling enough on any single orbit to receive the entire module), and finally from the relay satellites to the weather station.

The first leg of this journey would typically be completed using the TCP/IP protocol suite over the Internet, where electronic communication is generally characterized by:

Relatively small signal propagation latencies (on the order of milliseconds)

Relatively high data rates (up to 40 Gb/s for OC-768 service)

Bidirectional communication on each connection

Continuous end-to-end connectivity

On-demand network access with high potential for congestion

However, for the second leg a different protocol stack would be necessary. Electronic communication between a tracking station and a robotic spacecraft in deep space is generally characterized by:

Very large signal propagation latencies

Relatively low data rates (typically 8-256 kb/s)

Possibly time-disjoint periods of reception and transmission, due to orbital mechanics and/or spacecraft operational policy

Intermittent scheduled connectivity

Centrally managed access to the communication channel with essentially no potential for congestion

The combination of ling signal propagation times and intermittent connectivity-caused, for example, by the interposition of a planetary body between the sender and the receiver-can result in round-trip communication delays measured not in milliseconds or even minutes but in hours or days. The Internet protocols do not behave well under these conditions, for reasons discussed later in this article.

Yet a retransmission protocol of some sort is required to assure that every bit of the new executable module is correctly received. Forward error correction (FEC) can reduce data loss and corruption, but it consumes bandwidth whether data are lost or not, and it offers no protection against sustained outage. Optimum utilization of meager links demands automated repeat request (ARO) in addition to some level of FEC what in needed on this part of the route is an ARO system fir efficient retransmission on the link.

Recent developments in deep space communications technology have begun to address this problem. Over the past 20 years the Consultative Committee for Space Data Systems (CCSDS) has established a wide range of standards for deep space communications, including Telecommand and Telemetry wireless link protocols for spacecraft operations. A recent addition to this program is the CCSDS File Delivery protocol (CFDP)  which is designed for reliable file transfer across interplanetary distances .The “CFDPRP” link ARQ system in Fig. 1 is a hypothetical protocol that would be constructed by, in essence, implementing just the data retransmission procedures specified for CFDP. (Note that although CFDP implementations exist, the CFDP-RP stand alone subset has not yet been isolated for the purpose proposed here.)

For the final delivery of the module from the relay orbiters to the weather station on its wireless LAN, TCP/RP might again be the best choice .But now TCP/IP would be running over wireless link protocols, perhaps CCSDS Proximity-1 to the satellites and 802.11b among the landed assets. As in interplanetary space, and in contrast to the wired Internet, data rates on these links are likely to be fairly low, and the potential for congestion will be low for the foreseeable future.

This is not an altogether new problem. The three different sets of physical and operational constraints described above define very different networking environments. Protocols that enable effective communication within each of these environments have been developed and are continually being improved, and techniques already exist for forwarding data between environments that differ in less radical ways. For example, IP routers typically convey traffic between adjacent subnets running at different data rates; transport-level proxies can bridge between TCP connections tuned to different data loss profiles and relatively small differences in signal propagation time. But for large differences in the scale of round-trip latency, wholly different transport mechanisms are needed.

AN OVERVIEW OF CFDP

One approach to reliable transport that can tolerate extremely long and variable round-trip latency is reflected in the design of CFDP . CFDP can operate in either acknowledged (reliable) or unacknowledged mode; in acknowledged mode, lost or corrupted data are automatically retransmitted. CFDP’s design includes a number of measures adopted to enable robust operation of its ARQ system in high-latency environments:

Because the time required establishing a connection might exceed the duration of a communication opportunity, there is no connection protocol; communication parameters are managed.

Because round-trip latency may far exceed the time required to transmit a given file, CFDP never waits for acknowledgment of one transmission before beginning another. Therefore, the retransmitted data for one file may arrive long after the originally transmitted data for a subsequently issued file, so CFDP must attach a common transaction identifier to all messages pertaining to a given file transmission.

Because a large number of file transmissions may concurrently be in various stages of transmission, retransmission buffers typically must be retained in nonvolatile storage; this can help prevent catastrophic communications failure in the event of an unplanned power cycle at either the sender or the receiver.

WHY NOT THE INTERNET PROTOCOLS?

The Internet protocols are in general poorly suited to operation on paths in which some of the links operate intermittently or over extremely long propagation delays. The principal problem is reliable transport, but the operations of the Internet’s routing protocols would also raise troubling issues. While those issues don’t seem insoluble, solutions would entail significant divergence from typical operation in the Internet.

 RELIABLE TRANSPORT

Many applications operate properly only if data transmission is reliable; that is, if there is assurance that every item of data issued is successfully delivered to its destination (barring catastrophic infrastructure failure that requires human intervention). As noted earlier, an ARQ system of some sort is needed for this purpose.

The two broadly supported transport layer protocol options offered by the Internet protocol suite are TCP and UND, both operating over IP. TCP performs ARQ, but it is ill suited for operation over a path characterized by very long signal pro0pagation latency, particularly if the path contains intermittent links:

TCP communication requires that the sender and receiver negotiate a connection that will regulate the flow of data, Establishment of a TCP connection typically entails at least one round-trip (transmission and response) before any application data can flow. If transmission latency exceeds the duration of the communication opportunity, no application data will flow at all.

TCP delivers received data to the application only in transmission order. This means that any data loss requiring retransmission will retard the delivery of all data subsequently transmitted on the same connection until the lost data have been retransmitted successfully-at least one round-trip. To avoid this blockage, the sending application’s only option is to incur the transmission cost of opening additional parallel connections and distributing transmission transmission across those connections.

The throughput of TCP itself diminishes with increasing round-trip latency due to the manner in which TCP responds to data loss and handles network congestion.

Operating TCP end to end over a path comprising multiple links, some of which may be “ling” or intermittent, presents additional difficulties. TCP retransmission is end to end, and end-to-end retransmission delays the release of retransmission buffer space. For example, consider three-hop route, ABCD, where the one way signal propagation latency is 500ms on the AB hop, 8 min (480,00ms) on the BC hop, and 100ms on the CD hop. (Imagine A is a Mars rover, B is a scientist’s workstation somewhere on the Internet.) Retransmission is possible only if the original sender of a message retains a copy until it is confident that retransmission will not be necessary (e.g., the destination notifies it that the message has arrived). If retransmission is hop by hop- that is performed between the endpoints of each link individually-A can release its retransmission buffer space after about 1000ms: 500 ms for the transmission from A to B. then 500 ms for the acknowledgment from B to A. If retransmission is end to end, A’s retransmission buffer must be retained for 961,200 ms (AB, BC, CD, DC, CB, BA). Data loss would further delay the release of retransmission buffer space by at least one round-trip, consumed by the retransmission request and the retransmission of the message: loss of either the request or the response would, of course make matters even worse.

This in turn means that the amount of retransmission buffer space required at the endpoints of the route is increased by end-to-end retransmission. For optimum link utilization, the links should at all times be carrying as much data as they can. Assume that the maximum data rate on each link is 1 Mb/s. In the worst case, where A is the source of all traffic, links are underutilized if A is not issuing data at 1 Mb/s. Suppose A is issuing one 256 kb low-resolution camera image every 250 ms. At that rate assuming no data loss, A’s aggregate retransmission buffers will consume up to 1 Mb of memory if retransmission is hop by hop: after 1000 ms following the start of operations, the acknowledgments from B will be causing the release of space at the same rate that original transmissions from A are consuming it (256 kb every 0.25 s, as the images are issued, received, and acknowledged).But if retransmission is end to end, acknowledgments from D won’t start releasing A’s retransmission buffers until 961,200 ms following the start of operation: A’s retransmission buffers will consume over 961 Mb of memory.

This effect becomes increasingly significant with increasing transmission latency on any subset of the links, and for remote robotic communication assets operating in power-constrained environments it is highly undesirable. It increases the amount of storage required for a given level of performance and thus increases demand for power, both of which increase cost.

UDP-based approaches are also unsatisfactory. The absence of ARQ in UDP means that all responsibility for data acknowledgment and retransmission is left to the layer above UDP, either the application or some standard “middleware” system (e.g., RPC, RMI, RTP) the application uses. Reinventing retransmission in application is costly. Standardizing retransmission procedures in reusable middleware is more economical, but end-to-end retransmission in such middleware would be no more satisfactory than TCP’s end-to-end retransmission, for the same reasons.

 ROUTING PROTOCOLS

The Internet routing system enables routers to choose the best paths for packet forwarding. This system is implemented as a hierarchy to improve its scalability. At the top level of the hierarchy, path selection is resolved by the border gateway protocol (BGP) operating between IP address aggregates grouped into autonomous systems (Ass). Within an AS, such other routing protocols as Open Shorter Path First (OSPF), the international Organization for Standardization’s (ISO’s) Intermediate system to Intermediate used. These protocols select paths in a changing topology where more than one path may be available at a given time. For this purpose, they require timely updates from agents at various locations in the network. Most have timeouts; if they do not receive routing messages from agents at regular intervals, they assume loss of connectivity are assumed to be structural rather than operational and temporary, and no network elements to which there is currently no direct or indirect connectivity will be included in any computed path.

BGP is built on TCP. So its performance in high-delay environment is limited by the TCP operational issues discussed above; BGP performs poorly when TCP is unable to keep a connection established. Moreover, the distributed route computation logarithms themselves may be adversely affectively inaccurate timeout interval estimates. Premature timeouts lead to false negative conclusion about network connectivity; while tardy timeouts delay the detection of connectivity losses and may thus result in unsuccessful routing decisions.

A more serious problem is posed by the transient partitioning of networks in which long delay are cause by scheduled (intermittent) connectivity, where network links are created or removed in a predicable way. Since at any single moment there may currently be no direct or indirect connectivity to the destination at all even though planned connectivity episodes may address those lapses (while perhaps introducing new ones) in a predictable way in the future normal IP   route computation may in some cases be impossible.

 Delay- tolerant network architecture

It is this analysis that leads which has led to an architecture based on the internet independent middleware:  use exactly those protocols at all layers that are best suited to operation within each environment, but insert a new overlay network protocol between the applications and the locally optimized stacks. The overlay protocol serves to bridge between different stacks at the boundaries between environments in a standard manner, in effect providing a general-purpose application-level gateway infrastructure that can be used by any number of applications. By exploiting the ARQ capabilities of the local protocols as discussed later, the overlay protocol can offer applications an end –to –end data transmission service that is both reliable and efficient.

In order to be generally useful the overlay network protocol that is exposed to applications must be able to ensure reliable transmission between application counterparts separated by an arbitrary number of changes in environmental character; communications must traverse an arbitrary sequence of environments imposing sharply different sets of operating constraints. The protocol must therefore be a “ least common denominator” with no mandatory elements that make it inherently  unsuitable in any networking environment.

In particular, the design of the overlay protocol must not be based on any end-to-end expectation of :

Continuous connectivity

Low or constant transmission latency

Low error rate

Low congestion

High transmission rate

Symmetrical data rates

Common name or address expression syntax or semantics

Data arrival in transmission order

    Yet for optimum end-to-end performance we want to be able to take advantage of any of these favorable circumstances that are present.

Working from these considerations, we have identified three fundamental principles of delay tolerant networking (DTN) architecture:

A postal model of communications. Because transmission latency can be arbitrarily long, reliance on negotiation, query / response, or any other sort of timely conversational interchange is inadvisable, in both the overlay network protocol and the applications themselves. Insofar as it is possible the data transmitted through the network should constitute self-contained atomics units of work. Applications should issue messages asynchronously, not wait for the response to one message before sending the next.

             For example, the delay-tolerant request for transmission for transmission of a file would not initiate a dialog as in FTP. It would instead bundle together into a single message not only the name of requested file, but also unprompted all other metadata that might be needed in order to satisfy the request: the requesting user’s name and password encoding instructions and so on.

         In recognition of this general model, the units of data exchanged via the DTN overlay network protocol are termed bundles (which are functionally similar to e-mail messages); the protocol itself is named Bundling.

Tiered functionality. The protocol designed for use within various environments already exploits whatever favorable circumstances the environments offer while operating within their constraints, so the DTN architecture relies on the capabilities of those protocols to the greatest extent possible. The building protocol, one layer higher in the stack, performs any required additional functions that the local protocols typically cannot

Terseness. Bandwidth cannot be assumed to be cheap, so the DTN protocols are designed to be taciturn even at the cost of some processing complexity.

The main structural elements of DTN architecture, derived from these principles, are as follows,

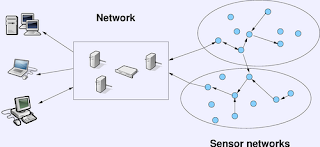

       Tiered Forwarding- the communication assets on which bundling protocol engines run (analogous to the hosts and routers in an IP based network) are termed DTN nodes. A DTN region is informally defined as a set of DTN nodes that can communicate among themselves using a single common protocol family that is suitable for the networking environment in which all of the nodes must be operate.

The DTN architecture generally relies on regional network layer protocols, such as IP in internet-like regions, for the forwarding of bundles among DTN nodes within each regional network. The forwarding of bundles among DTN that are in different regions is performed by bundling. Gateway nodes straddling the boundaries between regions are critical to this functions a gateway node has an interface in each of the adjacent regions (i.e., it can communicate using both region’s protocols) and can therefore convey a bundle between the regions by reading on interface and writing on the other.

Bundling’s store-and-forward operation must differ form that of other network protocols in that outbound data may need to be stored, not for milliseconds in dynamic memory, but for hours or days in nonvolatile media. This deferred transmission may be unavoidable because continuous link connectivity cannot be assumed: the link on which an outbound bundle must be transmitted may not be established until some time in the future, depending on node mobility (e.g., in mobile ad hoc networks), power management (e.g. in sensor networks), orbital dynamics (in deep space), and so on.

Tiered Naming and Addressing- In order for a bundle to reach its destination with in a given region, it must be tagged with a destination identifier that enables it to be forwarded by applicable regional protocols to the appropriate destination DTN node. That is, the destination identifier of bundle must map in some way to an address (or equivalent) in that region’s address space (or equivalent).

But in order for that bundle to be handed to the applicable regional protocols for delivery, it has to reach the region in which the destination DTN node resides. For this purpose, an additional addressing element is required: the name (or other ID) of the destination region itself, which is used for forwarding at the Bundling layer.

So the source and destination expression of bundles must be concatenated identifiers, termed  tuples, comprising both region identifiers that can be mapped to regional addresses (or equivalent):

{region ID, regional destination identifier}

Regional destination identifiers are late bound; that is they are mapped to regional address (or equivalent) only upon arrival at the destination region, rather than at the time of original transmission. This has two advantages for DTN nodes that are the sources of bundles:

The nodes need not understand all possible regional identifier system in order to issue bundles. Since the forwarding protocols in different regions may be different, it is possible that destination identifier syntax and mapping algorithms may also vary by region. Late binding enables new regions with new naming and addressing systems to be added without impact on previously deployed nodes.

Where identifier mapping operations rely on querying servers (e.g. the Internet’s Domain Name System), the issuance of a bundle is not delayed by the time needed to complete a mapping query.

Tiered Routing- The network protocols operating within regional networks are already supported by the routing protocol s designed for those regions. The forwarding performed by the Bundling must be supported by new routing protocols.

In particular, route computation at the Bundling layer must be sensitive to future link establishment opportunities, or contacts. Contacts may be anticipated in a variety of ways:

They may be scheduled by explicit network management, either manual or automated.

They may be discoverable in real time with in regions in which signal propagation delays are small.

They may be predictable based on region specific structural awareness, such as knowledge of mobility partners or orbital dynamics.

They may be computed stochastically based on prior contact history.

Different anticipated contacts may be characterized by different data rates or other transmission constraints.

Tiered ARQ- The DTN architecture depends on regional transport protocols such as TCP, or reliable link protocols such as CFDP-RP, for assured transmission of bundles among DTN nodes within each regional network. Efficient ARQ relies on the accurate computation of timeout intervals: premature transmission wastes bandwidth, waiting too long to retransmit degrades throughput and results in excessive allocation of storage to transmission buffers. Because the algorithms for those computations may be radically different in different regions, the concatenations of reliable transmission within adjacent regions is the most efficient mechanism for achieving reliability end to end in DTN.

However, this mechanism may not be sufficient. Large round-trip transmission latencies within a region. Whether due to long signal propagation times or interruption in connectivity, may results in aggregate retransmission buffer size at a given node that exhaust available resources. When transmission buffers must be prematurely released, or a retransmitting node simply crashes, reliable regional transmission fails. To guard against such failures, the DTN architecture identifies an additional ARQ mechanism that may be implemented at the Bundling level: a node that explicitly “takes custody” of a bundle guaranties that it can and will devote sufficient resources to retain a copy of the bundle until some downstream node subsequently takes custody of it. That enables custodial retransmission in the event that no such notice of custody transfer arrives.

This retransmission device can be viewed as a “safety net” that hould rarely reissue bundles. That timeout intervals it operates on must be worst-case estimates to prevent costly unnecessary retransmission, so it cannot be efficient enough to supplant the regional ARQ systems.

Tiered Security- One implication of the DTN principle of terseness is that performance degradation due to unauthorized consumption of DTN resources (transmission bandwidth, storage, and processing cycles) must be minimized. For this purpose, the exchange of bundles between adjacent nodes may be subject to verification of cryptographic credentials wherever this is deemed necessary by network administrators. This mutual suspicion cannot prevent the introduction of unauthorized traffic into the network, but by suppressing propagation of that traffic we can at least contain its impact.

Above Bundling, application may require user data authentication, integrity, and confidentiality services. However, any such services that rely on key management techniques based on querying key serves or negotiating shared keys will not be efficient overlong-latency or intermittent links. Since we will need to solve this problem in Bundling to implement mutual suspicion, this DTN solution might be offered in support of these application services as well. One possibility, inspired by S/MIME and PGP, would be to send a certificate containing cryptographic key material with each bundle. This technique might violate our terseness principle, though, since certificates range in size from 450 bytes to 8 Kbytes.

Tired Congestion Control- Congestion avoidance and control measures as need are generally built into regions’ exciting communications infrastructures. Within the Internet, carefully engineered congestion avoidance is one of the key features of TCP. In admission controlled environments. On the other band congestion is a management problem rather than an issue of protocol access to links is scheduled and controlled, so competition for link access is resolved by reservation rather than contention. In deep space operations for example it takes place during operations planning rather then in real time.

DTN architecture relies on the effectiveness of these regional measures. It remains to be seen whether or not the control of congestion within each region individually has the effect of minimizing congestion across all regions collectively. If not an additional congestion control mechanism will be needed at the Bundling layer.

Resilient delivery—the ultimate source and destination of a bundle are providers or consumers of services (service agents) typically but not always –taking form of process, tasks or threads. At the extreme end-to-end transmission latency for a bundle in a delay –tolerant network might be so long that the destination service agent is no longer running at the time the bundle arrives, or the source service agent is no longer running at the time a replay arrives. DTN   nodes must therefore be equipped for not only deferred transmission but also deferred delivery: the final destination node may need to retain a given bundle in local nonvolatile storage until such time as its destination service agents start (or restarts) and announces its readiness to receive data. It may even be necessary for building to take responsibility for reanimating destination service agents – invoking operating system services itself start or restart them, possibly with some state information – so that inbound bundles can be successfully delivered.

Postal service level – guided by the principle of postal communications, we look to literals postal operations for ideas on the different qualities of service DTN applications might find useful. Classes of service offered by U.S postal service have evolved over hundreds of years to meet the needs of millions of users exchanging information in a non-conversational manner. We propose to offer DTN applications a simplified subset of those services:

Three levels of delivery priority: low, standard, and high.

Three postal service notifications, all of which can optionally be sent to a specified “reply-to” service agent rather than to the original sender.

Notice of initial transmission (i.e., notice of mailing)

Notice of delivery to the ultimate destination application (i.e., return receipt)

Report of route taken (i.e., delivery record)

Result – The architecture that results from the integration of all these structural elements is highly adaptable and extensible, yet simple. The flow of data between a scientist and a spacecraft using a Bundling-based “Interplanetary Internet, “for example, might look something like Fig 3.

DTN without Bundling

A possible objection to this architecture is that it departs from the internet model, which is defined by the end-to-end use of IP rather than Bundling. In this section we consider the development of supporting infrastructure that would enable the deployment of DTN built on familiar Internet capabilities with no protocol modification.

We recall that IP itself is an overlay network protocol that mediates between different link layer protocols. Suppose one built a “reliable link” system that used TCP/IP tunnels, and suppose one then built IP virtual interfaces to this TCP/IP reliable link tunnel (RLT) system, and also to CFDP-RP and other systems that we have called regional protocols. This would give IP the end-to-end reliability over heterogeneous links that characterizes Bundling (Fig 4).

Tiered naming and addressing, including the late binding of names to addresses at the destination (rather than source) router, is possibly most challenging bundling capacity to replicate within the internet model without protocol modification. The approach considered here is to carry regional destination identifiers as URLs in HTTP 1.1 layered on top of UDP/IP. If DTN gateway nodes’ IP addresses are kept relatively stable so that they can be, in effect, used as region identifiers, URL resolution at the HTTP layer of the destination region’s gateway node can determine the IP address of the final destination; the HTTP service can then accomplish the final intraregional hop of the end-to eng route.

Other Bundling functions could be performed at the link layer, by either the new virtual interfaces or a new reliable link infrastructure (RLI) whose capabilities would be provided to them. RLI capabilities would include:

Management of non volatile storage, which would enable deferred transmission by the virtual interfaces and thus tiered forwarding.

Custodial retransmission, giving us  tiered ARQ.

Mutual suspicion functions, yielding tiered security.

Support for deferred delivery and service agent reanimation by virtual interfaces, yielding resilient delivery.

Postal service notifications informed by RLI’s custody awareness. These notifications, together with the proposed differentiated services capabilities of the internet, would give us postal service levels.

The scope if the delay tolerance in the Internet would grow as the new virtual interfaces and supporting RLI were added to hosts and routes.

CONCLUSION

Part of the appeal of the non-bundling DTN approach would be its familiarity to application developers. Delay-tolerant applications would still need to be engineered with DTN architectural principles borne in mind, but at least the interface to the DTN technology would be one that has been used to implement any number of internet applications over the past few decades.

However, the apportioning of bundling functions among an array of new virtual links, a new link layer reliability infrastructure, and variety of addressing and HTTP service expedients as a diffuse, fragile, and costly solution to the problem of delay tolerance in networking. By instead encompassing all this new capability in a single application-layer bundling service, we are able to develop, debug, and exercise the technology without impact on the lower layers of existing hosts and routers. Porting to different platforms is relatively easy, often little more than a matter of recompilation. As a result, we can fairly rapidly and inexpensively configure large and complex DTN networks for our research. In short, the simplicity of the current bundling architecture appears to have practical benefits as well as offer the prospect of easier expansion and extension.
