Multiyear Transmission Expansion Planning Using Ordinal Optimization
Abstract
The increasing complexity of the transmission expansion planning problem in the restructured industry makes simulation the only viable means to evaluate and compare the performances of different plans. Ordinal optimization is an approach suitable for solving the simulation-based multiyear transmission expansion planning problem. It uses crude models and rough estimates to derive a small set of plans for which simulations are necessary and worthwhile to find good enough solutions. In the end, reasonable solutions are obtained with drastically reduced computational burden.

INTRODUCTION
TRANSMISSION EXPANSION PLANNING (TEP): aims at strengthening an existing transmission network to serve power producers and customers in an optimal way. Due to the large-scale nature of a transmission system and its inherent complexities, TEP has always been a complex problem. It has been formulated as a large-scale mixed-integer nonlinear optimization problem. Various optimization techniques have been used to solve the problem, such as linear programming dynamic programming, nonlinear programming and mixed-integer programming. At the same time, various divide-and-conquer strategies such as Benders decomposition hierarchical decomposition, and branch-and-bound algorithm have also been applied to solve large-scale TEP problems.
                  Industry restructuring in recent years has resulted in the separation of generation and transmission systems and the introduction of competitive electricity markets. A comprehensive methodology, called the Transmission Economic Assessment Methodology (TEAM), was developed by the California ISO and London Economics to evaluate the economic benefits of transmission expansion .
                 The economic impacts of alternative transmission enhancement schemes are different for different market participants. The participants of an electricity market include independent power producers, large customers, transmission network owners, and the independent system operator. The interests of different parties vary a great deal. Furthermore, other factors, such as uncertainties in generation patterns, transmission congestions, and regulatory policy changes, need to be considered in the evaluation. Transmission expansion planning in the restructured industry has become much more complicated than before. No simple mathematical model can capture all the major factors in the transmission expansion planning. Computer simulation, in particular Monte Carlo simulation, has become the only viable approach for assessing alternative plans for transmission expansion.

               If, on the other hand, analytical approaches can be used to complement the simulation-based search methods so that the search for optimum performance can be narrowed down to a set of good enough solutions, then the computational requirements may be manageable. Ordinal Optimization (OO) is a method that provides a theoretical foundation for such an approach.
                In Section II, a TEP problem is described. Ordinal optimization theory is introduced in Section III. In Section IV, ordinal optimization theory is applied to solve the TEP problem. In Section V, numerical examples are given to illustrate the approach. Conclusions are drawn in Section VI.

TRANSMISSION EXPANSION PLANNING PROBLEM
                     We assume that there is an entity, which may be the transmission company, the independent system operator (ISO), or the regional transmission organization (RTO), who is responsible for planning the expansion of the transmission network (i.e., when and where to install new lines, capacities and types, etc.). The economic effects of TEP on various market players are different. Transmission owners are concerned about their investment returns; generation companies are about congestion rents affecting their profits; the system operator is about congestion revenues; and the consumers are about electricity prices after network enhancement. On the other hand, societal outage costs may very well be reduced after adding line capacities in the network. The magnitudes of the economic effects on generators, consumers, the system operator, and the society depend on system operating conditions that change from moment to moment. The benefit of an expansion scheme to an individual participant may take several years to realize. To simulate the effects of multiple years of an expansion plan on market players, an hourly-based dispatch model is more or less necessary for the whole expansion time horizon.
               Industry restructuring is an ongoing process in many parts of the world. Its initial focus has been on the competitive market for generation. Transmission systems remain largely regulated, and the rules and regulations for transmission expansion are mostly unsettled. The obligations and responsibilities of the participants are not fully defined, except that some general characteristics can be detected. The TEP has become an optimization problem whose variables are strongly stochastic and lumpy (discrete), with multiple participants having different objectives. Traditional optimization formulations and techniques are no longer appropriate. In this paper, we propose the application of ordinal optimization to the TEP problem. The development of OO is motivated by the complexities of large-scale, stochastic, discrete-event nonlinear dynamic systems, such as manufacturing systems, whose performance can only be evaluated by way of computer simulations.
                               Because the TEP problem is not fully standardized and specified, we will not attempt to give a definitive algorithmic solution to the problem. Instead, our goal is to demonstrate that the OO approach is viable. Therefore, our formulation of the TEP problem and its solution algorithm are for illustration purposes only. For that purpose and for the ease of exposition and understanding, the classical TEP formulation which has been commonly used in the past decades is used in this paper. The OO approach can be adopted by the planners to a formulation that incorporates the issues and considerations relevant to individual systems and to the development of models and performance indexes that the OO approach requires.
A. Classical TEP Model
                     For simplicity, we use the classical optimization model in this paper to represent the multiyear TEP problem. We assume that the objective function of the exact TEP model is to minimize the total cost, which is formulated as (1)

Where T represents total cost; I  represents the investment cost; G represents production cost under the optimal dispatching condition; and L represents the cost of loss of load as a result of contingencies.

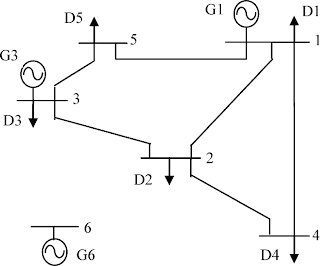

            We assume that the expanded line capacities are added yearly in a Y-year span and that the right-of-ways planned and authorized for building new lines are already specified. The transmission planner has the option to decide on which right-of-ways to use in order to build new lines and their capacities. Each combination of the lines built in one year is called a transmission expansion scheme for that year. The annual planning schemes over the span of Y-years are illustrated in Table I. Assume there are right-of-ways authorized for building new lines, the number of lines built on the right-of-way in the year is .

represents the expansion scheme of the year. The whole table represents the expansion scheme of the whole planning span.
1) Investment Cost:  The investment cost is calculated as the total expansion investment over the planning span. It is formulated as (2)


where Iym symbol represents the expansion investment on the mth right-of-way in year ;Iy is the investment cost in year y ;√ is the discount rate; and is the investment value corresponding to the beginning year of the investment. The Net Present Value (NPV) approach is used here.
2) Production Cost: The commonly used quadratic function (3) is used to represent the production cost Gh function of a generator. The optimal hourly production cost can be obtained by minimizing the total generation cost for each hour h=1……,..8760, subject to the power balance (dc load flow) and other operating constraints.

Where gi represents the real power generation of the generator on bus i ;ai ,bi , and ci  are the constant coefficients of power generation; Dh is the total load in hour h ; Gij represents the susceptence between node i and j ;θi represents the phase angle of node i ; iij)‘ and iij represent the upper and lower limits of line ij; gi and (gi)’represent the upper and lower limits of gi ; and N is the total number of nodes.
                 For year y, the total production cost Gy is the sum of for 8760 h

The NPV of the production cost for the whole planning span can be represented as (5)

3) Cost of Loss of Load: In the abnormal operation conditions, a good network configuration may help to avoid load shedding. Providing a reliable network under system contingencies is one of the goals of transmission expansion planning. The dispatch modes are different for different transmission network configurations.
                               The loss of load cost (LOLC) depends on the cost of load shedding due to a system contingency. The LOLC can be calculated using one of the three loss-of-cost functions: exponential, quadratic, and hyperbolic functions . In this paper, the quadratic form Ø( o) as in (6) is used to represent LOLC

    Where Øn, h represents LOLC at node in hour h ; ∆ represents the amount of lost load, ∆=(Dnh -dn ) , where Dnh is the load at node n in hour h ; and dn is the load at node n after the contingency. ξ    is a rough-estimated cost assuming that half of the total load is lost. In south Asian, ξ  is usually assumed to be 30–60 times the regular electricity price . The value of LOLC caused by the contingency in hour h , Lh , can be formulated as (7)

For the given probabilities of all contingencies, we can obtain the expected hourly LOLC for all contingencies considered. The expected hourly LOLC, E Lh  is formulated as (8)

                     Where K is the size of the contingency set considered; and Pk is the probability of contingency . The yearly LOLC can be formulated as the summation of , ELh  as shown in (9)

The total LOLC over the whole planning horizon can be obtained by (10)

To solve the proposed TEP model, (1)–(10), both the normal and abnormal operation modes of all hours of the whole planning span need to be calculated. Obtaining the exact solution for a multiyear TEP problem will result in a huge computational burden.

ORDINAL OPTIMIZATION
The ordinal optimization theory developed by Ho et al. is for solving simulation-based complex optimization problems. It has recently been applied to many areas in power systems such as optimal power flow (OPF) with discrete control  and bidding strategies of power suppliers in markets . In this paper, the theory is applied to solve the multiyear transmission expansion planning problem.
    The goal of ordinal optimization is to find good enough solutions for a complex optimization problem. A good enough subset G (θ) is the subset consisting of the top best solutions, say, the top 5% in the solution space. However, it is difficult to find the subset G for a simulation-based problem unless all the solutions in the solution space are calculated and compared. The OO method uses rough estimates from a crude model to rank the solutions. However, even with the use of a crude model, estimation of performance values for all solutions of a large solution space θ  may not be computationally feasible. Ordinal optimization theory uses a representative set with N samples, θN , to represent the original solution space  . If the elements of the representative set are randomly selected, the probability of an event where at least one of the N samples will fall within the top 5% of the whole solution space is

If N=1000 , then the probability that the top 5% good enough solutions are not in N=1000 the samples is P=0.951000= 5.29 x10-23≈0, which is extremely small (of the order x10-23 ). In this paper, we will use N=1000 samples to represent the solution space θ . However, calculating all N=1000 accurate solutions by computer simulations is still a formidable task. The goal of ordinal optimization is to reduce the number of necessary but computationally costly simulations.

A. Good Enough Subset and Selected Subset
Within the defined finite solution space θN(|θN|=1000) the number of top n% solutions is g=N*n% . The top solutions compose the “good enough” subset G of θN  . In the later sections of this paper, is selected to be 1000*5%=50.
         The multiyear TEP problem proposed in Section II can symbolically be represented as finding the minimum performance value T among all possible expansion schemes
Where x the variable corresponds to a set of line expansion schemes. For example, building certain lines on the approved right-of-ways in each year of the Y-year span is referred to as an expansion scheme. Assuming there are 1000 potential expansion schemes x1……x1000 , then a high quality solution could be found by calculating the performance values for 1000 schemes,T1……….T1000 , and choosing for the best one. Such and exhaustive search method is what we want to avoid. Instead, we reduce the search space to a small selected subset S(θN) and perform simulations within the selected subset.
The key to the determination of a selected subset is to be sure that the selected subset intersects with the “good enough”subset. The selected subset may be determined by using certain fast evaluation methods, such as mathematical algorithms, heuristics, etc., based on the crude approximate models of the system.
           For example, we may first use a crude model to obtain a rough estimate of the performance values T’1,….,T’1000 for the potential expansion schemes x1…..x1000 in problem (11). The rough evaluation should take much less time than the accurate calculation. Thus, the top 50 schemes found by the crude model may not be the same as (i.e., not aligned to) the top 50 schemes (subset G) obtained from the accurate model. However, if we select enough schemes (subset S) from the rough estimates, the selected subset S will have a high probability of overlapping with the elements in G. The number of overlapped elements with G is called the alignment level . Our goal is to find a subset S including at least elements of G. The probability of this event is called the alignment probability . For a given alignment probability and the alignment level , the size of the selected subset S is determined by the requirement that the probability that S overlaps the good enough subset G with at least elements is greater than p
For a given alignment probability and the alignment level , the size of the selected subset S is determined by the requirement that the probability that S overlaps the good enough subset G with at least elements is greater than P.

Obviously, the determination of the size of the selected subset is dependent on the nature of the underlying optimization problem. The ordinal optimization theory broadly divides the optimization problems into several classes. The classification is accomplished by way of constructing an ordered performance curve to be introduced below.

B. Ordered Performance Curve
The ordered performance curve (OPC) may be constructed based on the estimated performance values obtained by the crude model. The 1000 estimated performance values are arranged in an ascending order (for minimization problem). The X axis of the resulting plot is the scheme labels; whereas the Y axis represents the (estimated) performance values. The shape of an OPC determines the nature of the underlying optimization problem.
      The shapes of OPC curves can be broadly categorized into five classes: flat, u-shape, neutral, bell, and steep,
                       For a minimization problem, a smaller performance value means a good scheme, and a bigger performance value means a bad scheme. For a problem, if more small-value schemes are found, then the problem has more good schemes. In Fig. 1, the problem with a flat-shape OPC has more good schemes. The five OPC curves in the figure represent five classes of optimization problems: 1) flat—many good schemes, 2) U-shape—many good and bad schemes, 3) neutral—good and

bad schemes equally distributed, 4) bell—many intermediate schemes, and 5) steep—many bad schemes.

C. Size of Selected Subset
                           In , through extensive simulations and statistical analysis, a formula is derived to relate the size of the selected subset S to i) the shape of the OPC, ii) the size of good enough subset G, iii) the alignment level , iv) the alignment probability , and v) the error bound w between the performance values from the crude model and the accurate model.
Assume the requirements for our TEP optimization problem are

From Table II, we find that, for an optimization problem with a Bell shape OPC curve, the size of the selected subset is s=12 (for k=1 ). This means that, after a rough estimation, if we pick the best 12 schemes from the rough estimation to run the exact evaluations, there is a 95% probability that at least one scheme (k=1) out of the 12 will fall in the “good enough” subset G. If alignment level K  is set to be 2, then 15 schemes need to be calculated for exact evaluations to guarantee that at least two schemes will fall in the good enough subset G with the probability of 95%.
                           The exact performance value of each individual scheme is the estimated value plus the error in the estimation. The error terms are unknown. Adding such error terms will change the order of the ranking of the schemes that are flat (more or less the same performance) significantly. Therefore, more schemes need to be selected in order to capture enough good enough schemes. On the other hand, if the OPC is Steep, although fewer schemes out of the 1000 are needed for an exact calculation, the quality of the 1000 samples may be lower. In this case, it may be prudent to increase the initial sample from 1000 to a larger number in order to capture more “good enough” schemes.


CONCLUSION
Transmission expansion planning in the restructured industry is not standardized. However, its complexity makes simulation the only viable approach to evaluate the performance of alternative planning schemes. We submit that ordinal optimization can be effectively applied for the simulation-based multiyear TEP problem. The goal of this paper is not to document how to apply the technique to a particular system. This was done based on the calculations made on a crude model. The classical TEP problem is used for demonstration. Furthermore, a brief and self-contained exposition of the ordinal optimization theory is presented. The approach can be adopted by planners with a proper selection of the crude and exact of the specific TEP problem.
