ABSTRACT

Space mouse opens a new age for man-machine communication. This device is based on the technology used to control the first robot in space and has been adapted for a wide range of tasks including mechanical design, real time video animation and visual simulation. It has become a standard input device for interactive motion control of three-dimensional graphic objects in up to six degrees of freedom. Space mouse works with standard serial mouse interface without an additional power supply. The ergonomic design allows the human hand to rest on it without fatigue. Thus flying an object in six degrees of freedom is done without any strain.

INTRODUCTION

Every day of your computing life, you reach out for the mouse whenever you want to move the cursor or activate something. The mouse senses your motion and your clicks and sends them to the computer so it can respond appropriately. An ordinary mouse detects motion in the X and Y plane and acts as a two dimensional controller. It is not well suited for people to use in a 3D graphics environment. Space Mouse is a professional 3D controller specifically designed for manipulating objects in a 3D environment. It permits the simultaneous control of all six degrees of freedom - translation rotation or a combination. . The device serves as an intuitive man-machine interface.

The predecessor of the spacemouse was the DLR controller ball. Spacemouse has its origins in the late seventies when the DLR (German Aerospace Research Establishment) started research in its robotics and system dynamics division on devices with six degrees of freedom (6 dof) for controlling robot grippers in Cartesian space. The basic principle behind its construction is mechatronics engineering and the multisensory concept. The spacemouse has different modes of operation in which it can also be used as a two-dimensional mouse.

How does computer mouse work?

Mice first broke onto the public stage with the introduction "of the Apple Macintosh

in 1984, and since then they have helped to completely redefine the way we use

computers. Every day of your computing life, you reach out for your mouse

whenever you want to move your cursor or activate something. Your mouse senses

your motion and your clicks and sends them to the computer so it can respond

appropriately

Inside a Mouse

1. A ball inside the mouse touches the desktop and rolls when the mouse moves.

The main goal of any mouse is to translate the motion of your hand into signals that the computer can use. Almost all mice today do the translation using five components:

The underside of the mouse's logic board: The exposed portion of the ball touches

the desktop.

2. Two rollers inside the mouse touch the ball. One of the rollers is oriented so that it detects motion in the X direction, and the other is oriented 90 degrees to the first roller so it detects motion in the Y direction. When the ball rotates, one or both of these rollers rotate as well. The following image shows the two white rollers on this mouse:

3. The rollers each connect to a shaft, and the shaft spins a disk with holes in it. When a roller rolls, its shaft and disk spin. The following image shows the disk:

4.   On either side of the disk there is an infrared LED and an infrared sensor. The holes in the disk break the beam of light coming from the LED so that the infrared sensor sees pulses of light. The rate of the pulsing is directly related to the speed of the mouse and the distance it travels.

them into binary data that the computer can understand. The chip sends the binary data to the computer through the mouse's cord.

5.   An on-board processor chip reads the pulses from the infrared sensors and turns

A close-up of one of the optical encoders that track mouse motion: There is an infrared LED (clear) on one side of the disk and an infrared sensor (red) on the other.

The logic section of a mouse is dominated by an encoder chip, a small processor that reads the pulses coming from the infrared sensors and turns them into bytes sent to the computer. You can also see the two buttons that detect clicks (on either side of the wire connector).

In this optomechanical arrangement, the disk moves mechanically, and an optical system counts pulses of light. On this mouse, the ball is 21 mm in diameter. The roller is 7 mm in diameter. The encoding disk has 36 holes. So if the mouse moves 25.4 mm (1 inch), the encoder chip detects 41 pulses of light.

Each encoder disk has two infrared LEDs and two infrared sensors, one on each side of the disk (so there are four LED/sensor pairs inside a mouse). This arrangement allows the processor to detect the disk's direction of rotation. There is a piece of plastic with a small, precisely located hole that sits between the encoder disk and each infrared sensor. This piece of plastic provides a window through which the infrared sensor can "see." The window on one side of the disk is located slightly higher than it is on the other — one-half the height of one of the holes in the encoder disk, to be exact. That difference causes the two infrared sensors to see pulses of light at slightly different times. There are times when one of the sensors will see a pulse of light when the other does not, and vice versa.

MECHATRONICS

Mechatronics is concerned with the design automation and operational performance of electromechanical systems. Mechatronics engineering is nothing new; it is simply the applications of latest techniques in precision mechanical engineering, electronic and computer control, computing systems and sensor and actuator technology to design improved products and processes.

The basic idea of Mechatronics engineering is to apply innovative controls to extract new level of performance from a mechanical device. It means using modem cost effective technology to improve product and process performance, adaptability and flexibility.

Mechatronics covers a wide range of application areas including consumer product design, instrumentation, manufacturing methods, computer integration and process and device control. A typical Mechatronic system picks up signals processes them and generates forces and motion as an output. In effect mechanical systems are extended and integrated with sensors (to know where things are), microprocessors (to work out what to do), and controllers (to perform the required actions).

The word Mechatronics came up describing this fact of having technical systems operating mechanically with respect to some kernel functions but with more or less electronics supporting the mechanical parts decisively. Thus we can say that Mechatronics is a blending of Mechanical engineering, Electronics engineering and Computing

These three disciplines are linked together with knowledge of management, manufacturing and marketing.

Mechatronic goals-The multisensory concept

The aim was to design a new generation of multi sensory lightweight robots. The new sensor and actuator generation does not only show up a high degree of electronic and processor integration but also fully modular hardware and software structures. Analog conditioning, power supply and digital pre-processing are typical subsystems modules of this kind. The 20khz lines connecting all sensor and actuator systems in a galvanically decoupled way and high speed optical serial data bus (SERCOS) are the typical examples of multi sensory and multi actuator concept for the new generation robot envisioned.

The main sensory developments finished with these criteria have been in the last years: optically measuring force-torque-sensor for assembly operations. In a more compact form these sensory systems were integrated inside plastic hollow balls, thus generating 6-degree of freedom hand controllers (the DLR control balls). The SPACE-MOUSE is the most recent product based on these ideas.

stiff strain-gauge based 6 component force-torque-sensor systems.

miniaturized tnangulation based laser range finders.

integrated inductive joint-torque-sensor for light-weight-robot.

In order to demonstrate the multi sensory design concept, these types of sensors have been integrated into the multi sensory DLR-gripper, which contains 15 sensory components and to our knowledge it is the most complex robot gripper built so far (more than 1000 miniaturized electronic and about 400 mechanical components). It has become a central element of the ROTEX space robot experiment.

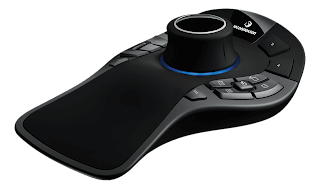

SPACEMOUSE

Why 3D motion?

In every area of technology, one can find automata and systems controllable up to six degrees of freedom- three translational and three rotational. Industrial robots made up the most prominent category needing six degrees of freedom by maneuvering six joints to reach any point in their working space with a desired orientation. Even broader there have been a dramatic explosion in the growth of 3D computer graphics.

Already in the early eighties, the first wire frame models of volume objects could move smoothly and interactively using so called knob-boxes on the fastest graphics machines available. A separate button controlled each of the six degrees of freedom. Next, graphics systems on the market allowed manipulation of shaded volume models smoothly, i.e. rotate, zoom and shift them and thus look at them from any viewing angle and position. The scenes become more and more complex; e.g. with a "reality engine" the mirror effects on volume car bodies are updated several limes per second - a task that needed hours on main frame computers a couple of years ago.

Parallel to the rapid graphics development, we observed a clear trend in the field of mechanical design towards constructing and modeling new parts in a 3D environment and transferring the resulting programs to NC machines. The machines are able to work in 5 or 6 degrees of freedom (dot). Thus, it is no surprise that in the last few years, there are increasing demands for comfortable 3D control and manipulation devices for these kinds of systems. Despite breathtaking advancements in digital technology it turned out that digital man- machine interfaces like keyboards

Seminar Report '06 Space Mouse

are not well suited for people to use as our sensomotory reactions and behaviors are and will remain analogous forever.

Basic principle

The new system used 6 one-dimensional position detectors. This system received a worldwide patent. The basic principle is as follows. The measuring system consists of an inner and an outer part. The measuring arrangement in the inner ring is composed of the LED, a slit and perpendicular to the slit on the opposite side of the ring a linear position sensitive detector (PSD). The slit / LED combination is mobile against the remaining system. Six such systems (rotated by 60 degrees each) are mounted in a plane, whereby the slits alternatively are vertical and parallel to the plane. The ring with PSD's is fixed inside the outer part and connected via springs with the LED-slit-basis. The springs bring the inner part back to a neutral position when no forces / torque are exerted: There is a particularly simple and unique. This measuring system is drift-free and not subject to aging effects.

The original hopes of the developers group that the license companies might be able to redevelop devices towards much lower manufacturing costs did not materialize. On the other hand, with passing of time, other technologically comparable ball systems appeared on the market especially in USA. They differed only in the type of measuring system. Around 1990, terms like cyberspace and virtual reality became popular. However, the effort required to steer oneself around in a virtual world using helmet and glove tires one out quickly. Movements were measured by electromagnetic or ultrasonic means, with the human head having problems in controlling translational speeds. In addition, moving the hand around in free space leads to fairly fast fatigue. Thus a redesign of the ball idea seemed urgent.

Magellan (the European Spacemouse):

With the developments explained in the previous sections, DLR's development group started a transfer company, SPACE CONTROL and addressed a clear goal: To redesign the control ball idea with its unsurpassed opto electronic measuring system and optimize it thus that to reduce manufacturing costs to a fraction of its previous amount and thus allow it to approach the pricing level of high quality PC mouse at least long-term.

The new manipulation device would also be able to function as a conventional mouse and appear like one, yet maintain its versatility in a real workstation design environment. The result of an intense*one-year's work was the European SpaceMouse, in the USA it is especially in the European market place. But end of 93, DLR and SPACE CONTROL jointly approached LOGITECH because of their wide expertise with pointing devices for computers to market and sell Magellan in USA and Asia. The wear resistant and drift free opto electronic, 6 component measuring system was optimized to place all the electronics, including the analogous signal processing, AT conversion, computational evaluation and power supply on only one side of a tiny SMD- board inside Magellan's handling cap. It only needs a few milliamperes of current supplied through the serial port of any PC or standard mouse interface. It does not need a dedicated power supply. The electronic circuitry using a lot of time multiplex technology was simplified by a factor of five, compared Seminar Report '06 Space Mouse to the former control balls mentioned before. The unbelievably tedious mechanical optimization, where the simple adjustment of the PSD's with respect to the slits played a central role in its construction, finally led to 3 simple injection moulding parts, namely the basic housing, a cap handle with the measuring system inside and the small nine button keyboard system. The housing, a punched steel plate provides Magellan with the necessary weight for stability; any kind of metal cutting was avoided. The small board inside the cap (including a beeper) takes diverse mechanical functions as well. For example, it contains the automatically mountable springs as well as overload protection. The springs were optimized in the measuring system so that they no longer show hysteresis; nevertheless different stiffness of the cap are realizable by selection of appropriate springs. Economically, Magellan was constructed as flat as can be so that the human hand may rest on it without fatigue. Slight pressures of the fingers on the cap of Magellan is sufficient for generating deflections in X, Y, and Z planes, thus shifting a cursor or flying a 3D graphics object translationally through space. Slight twists of the cap cause rotational motions of a 3D graphics object around the corresponding axes. Pulling the cap in the Z direction corresponds to zooming function. Moving the cap in X or Y direction drags the horizontally and vertically respectively on the screen. Twisting the cap over one of the main axes or any combination of them rotates the object over the corresponding axis on the screen. The user can handle the object on the screen a he were holding it in his own left hand and helping the right hand to undertake the constructive actions on specific points lines or surfaces or simply by unconsciously bringing to the front of appropriate perspective view of any necessary detail of the object. With the integration of nine additional key buttons any macro functions can be mapped onto one of the keys thus allowing the user most frequent function to be called by a slight finger touch from the left hand. The device has special features like dominant mode. It uses those degrees of freedom in which the greatest magnitude is generated. So defined movements can be created. Connection to the computer is through a 3m cable (DB9 female) and platform adapter if necessary. Use of handshake signals (RTSSCTS) are recommended for the safe operation of the spacemouse. Without these handshake signals loss of data may occur. Additional signal lines are provided to power the Magellan (DTS&RTS). Thus, no additional power supply is needed. Flying an object in 6 dof is done intuitively without any strain. In a similar way, flying oneself through a virtual world is just fun. Touching the keys results in either the usual menu selection, mode selection or the pickup of 3D objects.

Technical specifications of spacemouse.

Weight 720 grams

Size LxWxH:188xl20x44mm

Standard mode 3D interface

Translation mode Only the translational coordinates x,y,z are reported

Rotation mode Only the rotational coordinates a,b,c are reported

Dominant mode Only the coordinate with the greatest Magnitude is reported

Internal resolution Sbit

Interface RS232 (IBM PC port pinout)

3D-mode 9600 Baud, receives and transmits

Supply Via RS232 handshake signal lines RTS& DTS

MAGELLAN: FEATURES AND BENEFITS

Features

Ease of use of manipulating objects in 3D applications.

Calibration free sensor technology for high precision and unique reliability.

Nine programmable buttons to customize users preference for motion control

Fingertip operation for maximum precision and performance.

Settings to adjust sensitivity and motion control to the users preference.

Small form factor frees up the desk space.

Double productivity of object manipulation in 3D applications.

Natural hand position (resting on table) eliminates fatigue.

Benefits

As the user positions the 3D objects with the Magellan device the necessity of going back and forth to the menu is eliminated. Drawing times is reduced by 20%-30% increasing overall productivity. With the Magellan device improved design comprehension is possible and earlier detection of design errors contributing faster time to market and cost savings in the design process. Any computer whose graphics power allows to update at least 5 frames per second of the designed scenery, and which has a standard RS232 interface, can make use of the full potential of Magellan spacemouse. In 3D applications Magellan is used in conjunction with a 2D mouse. The user positions an object with spacemouse while working on the object using a mouse. We can consider it as a workman holding an object in his left hand and working on it with a tool in his right hand. Now Magellan spacemouse is becoming something for standard input device for interactive motion control of 3D graphics objects in its working environment and for many other applications.

FUTURE SCOPE

Magellan's predecessor, DLR's control ball, was a key element of the first real robot inspace, ROTEX- (3), which was launched in April 93 with space shuttle COLUMBIA inside a rack of the spacelab-D2. The robot was directly teleoperated by the astronauts using the control ball, the same way remotely controlled from ground (on-line and off line) implying "predictive" stereographies. As an example, the ground operator with one of the two balls or Magellans steered the robot's gripper in the graphics presimulation, while with the second device he was able to move the whole scenery around smoothly in 6 dot Predictive graphics simulation together with the above mentioned man machine interaction allowed for the compensation of overall signal delays up to seven seconds, the most spectacular accomplishment being the grasping of a floating object in space from the ground. Since then, ROTEX has often been declared as the first real "virtual reality" application.

VISUAL SPACEMOUSE

A most intuitive controlling device would be a system that can be instructed by watching and imitating the human user, using the hand as the major controlling element. This would be a very comfortable interface that allows the user to move a robot system in the most natural way. This is called the visual space mouse. The system of the visual space mouse can be divided into two main parts: image processing and robot control. The role of image processing is to perform operations on a video signal, received by a video camera, to extract desired information out of the video signal. The role of robot control is to transform electronic commands into movements of the manipulator.

CONCLUSION

The graphics simulation and manipulation of 3D volume objects and virtual worlds and their combination e.g. with real information as contained in TV images (multi-media) is not only meaningful for space technology, but will strongly change the whole world of manufacturing and construction technology, including other areas like urban development, chemistry, biology, and entertainment. For all these applications we believe there is no other man- machine interface technology comparable to Magellan in its simplicity and yet high precision. It is used for 3D manipulations in 6 dof, but at the same time may function as a conventional 2D mouse.
