ABSTRACT

The hottest technology in personal networking is wireless networking, which allows users to share a high-speed internet connection among multiple computers without being tethered to wires or wall jacks. Traditional indoor wireless uses a network of transmitters receiver and antennas for communication in the interior of a building. Such a placements is more a matter of trial & error and may many a times lead to ineffective communication. An easy solution to this problem using the already existing infrastructures is the HAVC duct. Heating ventilation and air conditioning ducts in building are typically hollow metal pipes which can be used as waveguides to carry signals and provide the network access to offices. Knowledge about channel properties is crucial to design such a communication system. At high frequencies this duct behaves as a multimode wave guide with a transmitting antenna coupling in and a receiving antenna coupling out. This model represents a step towards the development of a tool for planning a wireless distribution system using building HVAC ducts.

INTRODUCTION

               Wireless transmission of electromagnetic radiation (communication signals) has become a popular method of transmitting RF signals such as cordless, wireless and cellular telephone signals, paper signals, two way radio signals,video conferencing signals and LAN signals indoors.

Indoor wireless transmission has the advantage that building in which transmission is taking place does not have to be filled with wires or cables that are equipped to carry a multitude of signals. Wires and signals are costly to install and may require expensive upgrades when their capacity is exceeded or when new technologies require different types of wires and cables than those already installed.

                Traditional indoor wireless communication systems transmit and receive signals through the use of a network of transmitters, receivers and antennas that are placed through out the interior of a building. Devices must be located such that signals must not be lost or signal strength may not get attenuated. Again a change in the existing architecture also affects the wireless transmission. Another challenge related to installation of wireless networks in buildings is the need to predict the RF propagation and coverage in the presence of complex combinations of shapes and materials in the buildings.

In general, the attenuation in buildings is larger than that in free space, requiring more cells and higher power to obtain wider coverage. Despite of all these, placement of antennas, receivers and antennas in an indoor environment is largely a process of trial and error. Hence there is need for a method and a system for efficiently transmitting RF and microwave signals indoors without having to install an extensive system of wires and cables inside the buildings.

This paper suggests an alternative method of distributing electromagnetic signals in buildings by the recognition that every building is equipped with an RF wave guide distribution system, the HVAC ducts. The use of HVAC ducts is also amenable to a systematic design procedure but should be significantly less expensive than other approaches since existing infrastructure is used and RF is distributed more efficiently.



THE HVAC SYSTEM

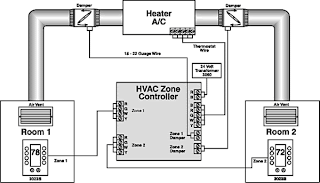

Heating, Ventilation and Air Conditioning are ducts used in buildings designed to carry air to and from all parts of the building. In most parts of the USA and Europe almost every building is equipped with these HVAC ducts which can also function as hollow wave guides for microwave and RF signals.

Therefore, all forms of wireless transmission can in principle can be done through these waveguides. Since most of the offices and other places in buildings where people work, sit or reside are reached by this HVAC ductwork, it is also possible to provide communications between building occupants and rest of the world.

The HVAC system includes a device usually a coupler for introducing electromagnetic radiation into the duct work such that the duct acts as a wave guide. System also includes devices for enabling the electromagnetic radiation to propagate beyond the duct. In most cases ducts are largest near the central air handling equipment and become smaller as they branch out to various rooms.

Branches in the duct behaves as wave guide power splitters. Eventually RF would be radiated into the rooms through specially designed louvers. Coverage in corridors and spaces guarded from louvers could be realised by placing passive reradiators in the sides of the ducts.

The key idea behind this distribution is that low loss electromagnetic waves can propagate in hollow metallic pipes if the dimensions of the ducts are sufficiently large compared to the wavelength. Since the HVAC ducts are made of sheet metal, they are excellent waveguide candidates. the lowest frequency that can propagate in a duct depend upon the size and cross section shape of the duct.

The operation is described as follows. For the down link, RF signals sent from a base station propagate through the ductwork and a small portion of electromagnetic energy is radiated by a simple antenna inserted into the HVAC duct passing from each room. In the uplink, the RF signal of the end-user transmitted by the laptop, handset etc. reaches the passive antenna located in each office and propagates towards the base station.

PROPAGATION MODEL

                        The HVAC channfl like all other wave guides is a linear channel and therefore can be completely characterised by its frequency response or transfer function. To design a wireless HVAC system, an analytic model is necessary. This model must be valid for the ducts of different cross sections and allow to investigate easily the frequency response dependence on such parameters as antenna geometry, transmitter receiver seperation distance, duct cross section size, conductivity of duct material, reflection coefficients of terminated duct ends etc. Such a model for the HVAC duct channel in the case of a straight multimode duct terminated at both ends is given below.

 This is a straight HVAC duct of circular cross-section, made of metal and and terminated at each end as shown. Two monopole probe antennas provide the coupling. Such a duct is a double-probe wave guide with a number of propagating modes N determined by the operating frequency and waveguide dimensions. Let the termination loads 1&2 ie load1 and load2, have respective reflection coefficients '1n & '2n for wave guide of mode n which can be frequency dependent. Let ‘L’ be the distance between the two antennas and respective distances to the terminated ends be L1 and L2.

EXPERIMENTAL VERIFICATION

To validate the propagation model already described, verification of the frequency response has to be done experimentally. Measurements were performed on a straight section of a circular HVAC duct 30.5 cm in diameter made of galvanized steel.

            The antennas were thin copper monopole probes 3.5cm long and 1mm in diameter, set on a straight line along the duct length. A network analyzer (Agilent E8358A) with an internal impedance of 50 ohms to measure the frequency response between the probes in the 2.4 to 2.5GHz is used.

The theoretical frequency response was computed for the case of a duct with matched load on both the ends i.e.'= 0. The frequency response shape (number of nulls, their depth and position) depends on the excited mode distribution, the distance between the antennas and the distance between the terminations if any. Three most significant excited modes in this geometry are TE61(R=16.5ohm), TE51(R=8.6ohm), TE41(R=3.5ohm). It is mostly the interference between these three modes that determines the specific locations of peaks and nulls. Adding more modes increases the accuracy of the theoretical curve.

It can be seen that the experimental frequency response curve (dashed line) and the theoretical frequency response curve (solid line) are in good agreement. Small-scale variations observed on the experimental curve are due partially to surface and shape imperfections of the circular HVAC duct used for measurements.

It can be seen that the experimental frequency response curve (dashed line) and the theoretical frequency response curve (solid line) are in good agreement. Small-scale variations observed on the experimental curve are due partially to surface and shape imperfections of the circular HVAC duct used for measurements.

RESEARCH ISSUES

Although the preliminary experiments described in this paper support the feasibility of the HVAC RF distribution system, detailed research in a number of areas is needed to develop systematic design procedures. In the following we briefly comment on several of these.

Characterization of the RF channel

Unlike conventional waveguide circuits, in most cases multiple waveguide modes will be above cutoff in ducts. This multimode environment will lead to delay spread much like multi path in open propagation environments. Other sources of delay spread will be reflections from the bends, junctions and end plates. In any event, delay spread and coherence band width of such channel needs to be explored both theoretically and experimentally.

Coupling into multimode ducts

            The existence of multiple propagating modes is a complication usually avoided in conventional waveguide circuits. Design and design rules are needed for realizing efficient couplers in the various sizes and shapes of ducts that are commonly used, for each frequency bands of interest.

Mode conversion and cross polarization in multimode ducts

            In the presence of multiple propagating modes, it is likely that the preferred strategy is to optimize coupling into the lowest-order, or dominant, wave guide mode. However, since HVAC ducts are not constructed with the same precision as the actual wave guide circuits, mode conversion is likely at joints and other imperfections. In addition to creating delay spread as discussed above, this mode conversion could lead to signal loss owing to excitation to orthogonally-polarized modes, as well.

Power division at branches and tees

            To obtain satisfactory power distribution throughout a large building, it will be necessary to be able to determine and control the power division at branches and tees.This power division is also complicated by the 4existance of multiple propagating modes. The use of irises made using wire screens and grids should allow independent control of power division and air flow.

Coupling around obstructions

            Techniques are needed to couple around unavoidable obstructions in the ducts. Design for both active and passive coupling needed to be explored. The simplicity of passive probe couplers on either side of the obstruction connected by low loss coax is attractive, but bidirectional amplifiers may be needed in some instances as well. Such technique s could also be used to couple two otherwise unconnected duct systems.

 CONCLUSION

This paper presents a new technique for high speed communication inside buildings which seems to a viable inexpensive alternative to other existing “last mile” technologies. Because existing infrastructure is used and the ducts exhibit losses that are low compared with direct propagation and leaky coax, such a system has the potential to be lower in cost and more efficient than either conventional method.  An approximate, closed-form, propagation model for the straight HVAC duct channel in the form of a multimode wave guide is presented here. Experimental measurements are performed to validate this model and they are found to confirm the theoretical results. Efficient modeling of RF propagation in a real HVAC system is a challenging task. However this model should be perceived as a first step toward predicting the radio coverage in ducts when designing an HVAC wireless distribution system.
